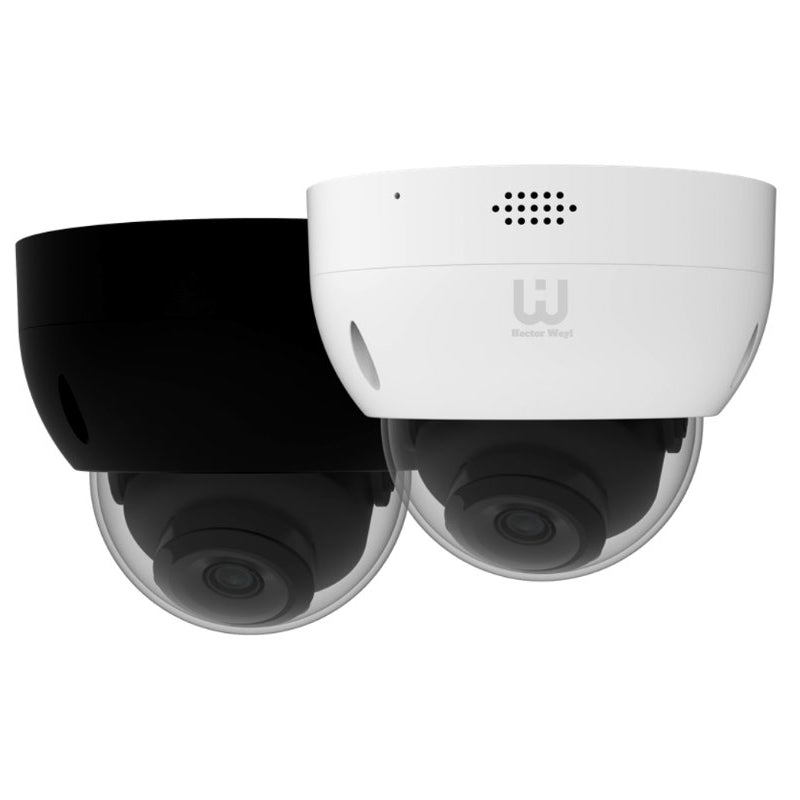

HW-IPC-E2511C-ZAS-L 5MP Advanced Dual Light Vari-Focal Dome IntelliSight AI Network Camera
Couldn't load pickup availability
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
HW-IPC-E2511C-ZAS-L 5MP Advanced Dual Light Vari-Focal Dome IntelliSight AI NetworkCamera
Unveiled by Hector Weyl, IntelliSight comprises an array of artificial intelligence products and solutions. These are underpinned by dedicated AI chips and cutting-edge deep learning algorithms, ensuring precise identification of humans and vehicles. This precision empowers users to swiftly respond to specific targets. Leveraging the innovative technologies of Hector Weyl, IntelliSight offers a suite of smart, user-friendly, and comprehensive offerings designed to meet a wide range of needs.
- 1/2.8" CMOS;
- 5MP(1~25/30fps) ;
- 3 Streams; H.265/H.264;
- DWDR;
- SD Card;
- 2.7mm ~13.5mm motorized lens;
- White Light & IR Light distance:40M;
- Intrusion, Tripwire( Support the Classification of Vehicle, Human );
- AMD;
- Built-in Mic;
- DC12V/PoE;
- IP67, Metal
|
Camera |
|
|
Image Sensor |
1/2.7” CMOS |
|
Max. Resolution |
5MP, 2880 (H) × 1620 (V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.006Lux(Illuminator off); 0Lux (Illuminator on) |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
Warm light distance 30 m, IR distance 40m |
|
Illuminator Control |
Auto; Manual |
|
Lens |
|
|
Lens Type |
Motorized Vari-Focal |
|
Focal Length |
2.7 mm–13.5mm |
|
Max. Aperture |
F1.2 |
|
Field of View |
Horizontal: 99°–28° Vertical: 71°–21° Diagonal: 134°–35° |
|
Iris Type |
Auto |
|
Intelligence |
|
|
Smart Motion Detection |
Yes |
|
Perimeter Protection |
Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor) |
|
Face Detection |
NA |
|
Object Detection |
NA |
|
People Counting |
NA |
|
Heat Map |
NA |
|
AI Search |
Work together with NVR |
|
Video |
|
|
Compression |
H.264H; H.264M; H.264B; H.265 |
|
Smart Compression |
H.264H+; H.264M+; H.264B+; H.265+ |
|
Video Frame Rate |
Main Stream: 5MP (1 fps–25/30 fps) |
|
Sub Stream: D1 (1 fps–25/30 fps) |
|
|
Third Stream: 720P (1 fps–25/30 fps) |
|
|
Stream Capability |
3 Streams |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 3 Kbps–20480 Kbps |
|
H.265: 3 Kbps–20480 Kbps |
|
|
Day/Night |
Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Yes |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 Areas, rectangular) |
|
Image Rotation |
180° |
|
Mirror |
Yes |
|
Privacy Masking |
4 Areas |
|
Audio |
|
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Optional |
|
Alarm |
|
|
Arming/Disarming |
Optional |
|
Sound Alarm |
Optional |
|
Light Alarm |
Yes |
|
Alarm Event |
Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error |
|
Network |
|
|
Network |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP |
|
Interoperability |
ONVIF; CGI; P2P |
|
User/Host |
20 (Total bandwidth: 80 M) |
|
Storage |
FTP; Micro SD card (support max. 256 G/FAT32) |
|
Browser |
IE: IE8 and later; Chrome; Firefox |
|
Management Software |
PC Software(HSS) |
|
Mobile Client |
IOS; Android |
|
Port |
|
|
Audio Input |
NA |
|
Audio Output |
NA |
|
Alarm Input |
NA |
|
Alarm Output |
NA |
|
Power |
|
|
Power Supply |
12V DC (±30%)/PoE (802.3af) |
|
Power Consumption |
Basic: 2.8 W; Max. 6.5W |
|
Environment |
|
|
Operating Conditions |
–30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|
Storage Conditions |
–40°C to +60°C (–40°F to +140°F) |
|
Protection Grade |
IP67,IK10 |
|
Structure |
|
|
Casing |
Metal |
|
Dimensions |
102 mm × Φ122 mm |
|
Net Weight |
520g |
