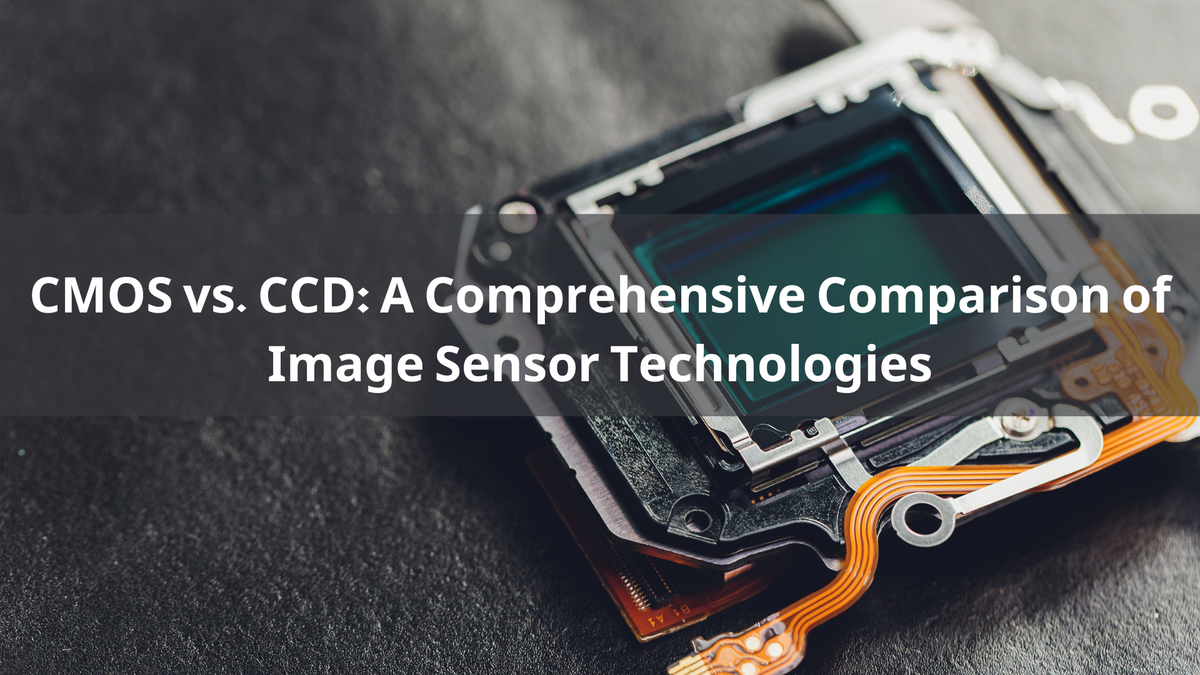

CMOS vs. CCD: A Comprehensive Comparison of Image Sensor Technologies

April 14, 2025

In the realm of digital imaging, two primary technologies have dominated the landscape: Charge-Coupled Devices (CCD) and Complementary Metal-Oxide Semiconductors (CMOS). These sensors serve as the eyes of digital cameras, converting light into electrical signals that ultimately become the images we capture. Understanding the differences between these technologies can help photographers, scientists, and consumers make informed decisions about which sensor type best suits their needs.

Historical Development

CCD Technology

CCD sensors were developed in 1969 by Willard Boyle and George E. Smith at Bell Labs. Initially designed for memory storage, their potential for capturing images was quickly realized. By the 1980s and 1990s, CCD sensors became the gold standard in digital imaging, renowned for their high image quality and low noise levels. They were widely adopted in applications requiring precision, such as astronomy, medical imaging, and professional photography.

Key milestones in CCD development include:

1971: Frame-transfer CCD image sensor
1973: Interline-transfer CCD
1982: Pinned photodiode technology

By 1990, nearly all digital cameras used CCDs, including models made by major manufacturers worldwide. However, CCD sensors demonstrated numerous limitations including charge transfer efficiency, readout rate, power consumption, manufacturing yield, and integration challenges.

CMOS Technology

CMOS technology emerged around the same time as CCD but initially lagged in imaging capabilities due to issues with noise and lower sensitivity. However, CMOS offered advantages in power efficiency and integration potential. The breakthrough came in the mid-1990s with the development of CMOS Active Pixel Sensors (CMOS-APS), which significantly improved performance.

The high-performance CMOS development was led by NASA's Jet Propulsion Laboratory at Caltech in the United States. With the aid of microlenses and backside illumination (developed by Eric R. Fossum in 1994), CMOS sensors addressed many of the shortcomings of CCDs. Not long after, CMOS would become the dominant digital camera sensor technology in the marketplace.

Technical Differences

CCD Sensors

CCD sensors use a single readout amplifier for the entire array, transferring each pixel's charge across the chip sequentially. This serial process ensures uniform signal quality but results in slower readout speeds and higher power consumption.

CMOS Sensors

CMOS sensors feature individual amplifiers at each pixel, enabling parallel processing. This architecture allows for faster readout speeds and significantly lower power consumption compared to CCDs.

Advantages of CCD

Superior Image Quality: Historically, CCDs have offered better dynamic range and lower noise, especially in low-light conditions.
Excellent Color Reproduction: The lack of on-chip processing in early implementations provided raw, uncompressed data valued for its fidelity.
Proven Track Record: CCDs have been the trusted choice for scientific research and high-end photography for decades.
Minimal Noise: CCD sensors were known for their ability to produce images with minimal noise, making them ideal for applications where image quality was paramount.

Advantages of CMOS

Lower Power Consumption: CMOS sensors can be up to 100 times more power-efficient than CCDs, making them ideal for battery-powered devices.
Faster Readout Speeds: Parallel processing enables higher frame rates, crucial for video applications and real-time imaging.
Cost-Effective Manufacturing: CMOS sensors are cheaper to produce due to compatibility with standard semiconductor fabrication processes.
Higher Integration Potential: On-chip functionality allows for smaller, more compact camera designs with additional features integrated directly into the sensor.
Improved Low-Light Performance: Modern CMOS sensors have closed the gap with CCDs in low-light performance through technologies like backside illumination and dual-gain architecture.

Disadvantages of CCD

Higher Power Requirements: The serial charge transfer process consumes more energy, limiting suitability for portable devices.
Slower Readout Speeds: Sequential processing results in slower performance for capturing fast-moving subjects.
Higher Manufacturing Costs: The specialized production process makes CCDs more expensive to manufacture.
Limited Integration: CCDs typically require separate processing chips, making camera designs larger and more complex.

Disadvantages of CMOS

Early Noise Issues: Early CMOS sensors suffered from higher noise levels due to the independent readout process, though modern advancements have significantly reduced this gap.
Historically Inferior Low-Light Performance: While modern CMOS sensors have improved, they initially lagged behind CCDs in low-light sensitivity.
Potential for Distortion: CMOS sensors can exhibit rolling shutter effects, which may cause distortion in fast-moving subjects.

Applications

CCD Applications

Scientific Imaging: Astronomy, medical imaging, and laboratory research where precision and low noise are critical.
High-End Photography: Professional photographers often prefer CCDs for their superior dynamic range and color accuracy.
Specialized Imaging: Applications requiring long exposure times benefit from CCDs' lower noise characteristics.
Satellite Imaging: The high reliability and image quality of CCDs make them suitable for space applications.

CMOS Applications

Consumer Electronics: Smartphones, tablets, and action cameras leverage CMOS's power efficiency and compact size.
Video Recording: High-speed video applications benefit from CMOS's faster readout capabilities.
Industrial Automation: Machine vision systems require the rapid processing and efficiency that CMOS provides.
Medical Imaging: CMOS sensors are used in various medical imaging applications including X-rays and MRI.
Security Cameras: The power efficiency and cost-effectiveness of CMOS make it ideal for surveillance applications.

Sony's Pioneering Contributions to CMOS Image Sensor Technology

Sony has been at the forefront of imaging technology innovation, particularly in CMOS image sensors, transforming how we capture and process visual information across various applications. The company's breakthrough development of the world's first back-illuminated CMOS image sensor revolutionized the industry by flipping the traditional sensor structure, placing the wiring layer behind the light-sensitive surface. This innovation dramatically improved light sensitivity and image quality while enabling smaller pixel sizes and more compact camera designs. Sony further advanced imaging technology with its stacked CMOS image sensor architecture, which separates photodiodes and pixel transistors onto different substrate layers. This design approximately doubles the saturation signal level, significantly widening the dynamic range and reducing noise, especially in low-light conditions. The company's development of intelligent vision sensors integrated AI processing directly into the sensor, enabling on-chip analytics without requiring external processors. Additionally, Sony's ToF (Time of Flight) image sensors, utilizing proprietary back-illuminated CAPD technology, have enhanced depth sensing capabilities for applications ranging from facial recognition to augmented reality. Through continuous innovation in areas like Cu-Cu direct bonding and multi-layered sensor architectures, Sony has maintained its position as a leader in CMOS technology, contributing to advancements in consumer electronics, scientific research, automotive systems, and industrial imaging.

Market Landscape

Today, CMOS sensors dominate the majority of imaging applications due to their cost-effectiveness, power efficiency, and versatility. However, CCD sensors remain relevant in niche markets where their superior image quality and low-noise performance justify the higher cost and power requirements.

The transition from CCD to CMOS was significantly accelerated by manufacturers like Canon, who made pivotal breakthroughs in CMOS sensor technology during the early 2000s. Other manufacturers followed suit, and CMOS sensors rapidly improved, addressing early noise issues and surpassing CCD in almost every aspect by the mid-2010s.

The choice between CMOS and CCD sensors depends on the specific requirements of the application. While CMOS technology has made significant strides and now dominates most markets, CCD sensors continue to hold value in specialized fields requiring the highest image quality and precision. As technology continues to evolve, both sensor types will likely find continued relevance in different segments of the imaging industry.
