Staying current with the latest firmware is essential for maintaining the performance and security of your DAHUA Cameras and NVRs. DAHUA's ConfigTool software simplifies the process of upgrading firmware, allowing for both single device and batch upgrades. This guide will walk you through each step, ensuring a smooth and efficient firmware update process.

Prerequisites:

• DAHUA device(s) with an active network connection.
• ConfigTool installed on a local computer.
• The appropriate firmware file for your device(s) downloaded to your computer.

Step by Step Instructions for Single Device Upgrade:

Step 1: Launch ConfigTool and Access Search Settings

• Open ConfigTool and click on "Search Setting" at the top.



Step 2: Set Search Parameters

• Check the boxes for "Current Segment Search" and "Other Segment Search."

• Enter the IP range for the device in "Start IP" and "End IP."

• Input the device's login credentials in "Username" and "Password."


• Click "OK."


Step 3: Initiate Device Upgrade

• Click on "Device Upgrade" on the left side of the ConfigTool interface.


•

Step 4: Select Device and Firmware File

• Find the device you want to upgrade in the list and click on the "Folder" icon next to it under the "Upgrade File Path" column.
•

Step 5: Locate and Select Firmware File

• Use the file explorer to find the firmware file on your computer and select it.
• Click "Open."


Step 6: Confirm Firmware Path and Initiate Upgrade

• Verify the file path is listed next to the device in the list.
• Click on the "Upgrade" icon to the right of the device in the "Operate" column.

Step 7: Confirm Upgrade Process

• Click "OK" to start the firmware upgrade.

Step 8: Monitor Upgrade Progress

• Watch the progress bar fill up as the device is upgraded.
•

Step 9: Verify Successful Upgrade

• A green check mark next to the device in the list indicates a successful upgrade.

Step by Step Instructions for Batch Device Upgrade:

Step 1: Set Search Parameters (Same as Single Device Steps 1 and 2)

Step 3: Select Devices for Batch Upgrade

• Click on "Device Upgrade" on the left.
• Find the devices you want to upgrade in the list and check the boxes next to them.
• Ensure all selected devices require the same firmware.
• Click on "Batch Upgrade" at the top.

Step 4: Confirm Batch Upgrade Process

• Click "OK" to initiate the batch firmware upgrade process.
•

Step 5: Select Firmware File for Batch Upgrade

• Click on "Browse," locate and select the firmware file on your computer, then click "Open."
•

Step 6: Initiate Firmware Upgrade

• Click "OK" at the bottom of the ConfigTool interface.

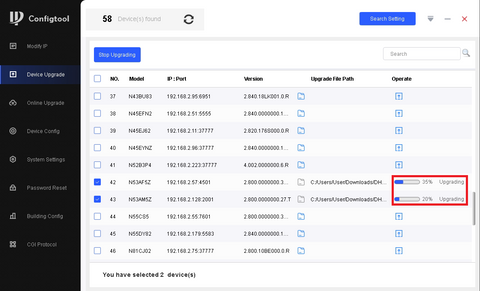

Step 7: Monitor Batch Upgrade Progress

• Progress bars will fill up for each device as they are upgraded.

Step 8: Verify Successful Batch Upgrade

• Green check marks next to the devices in the list confirm successful upgrades.

Conclusion: Firmware upgrades are a critical part of maintaining the reliability and security of your DAHUA Cameras and NVRs. With ConfigTool, DAHUA makes it easy to perform these updates, whether you're updating a single device or multiple devices at once. Always remember to perform a factory reset on all devices after the firmware update is complete to ensure optimal performance.

Remember, regular firmware updates not only enhance your system's capabilities but also protect it against potential vulnerabilities. With DAHUA's ConfigTool, keeping your surveillance system up to date has never been more accessible.
