DAHUA VTS8A40B-CG Master Station

In stock
SKU: VTS8A40B-CG
$562.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:

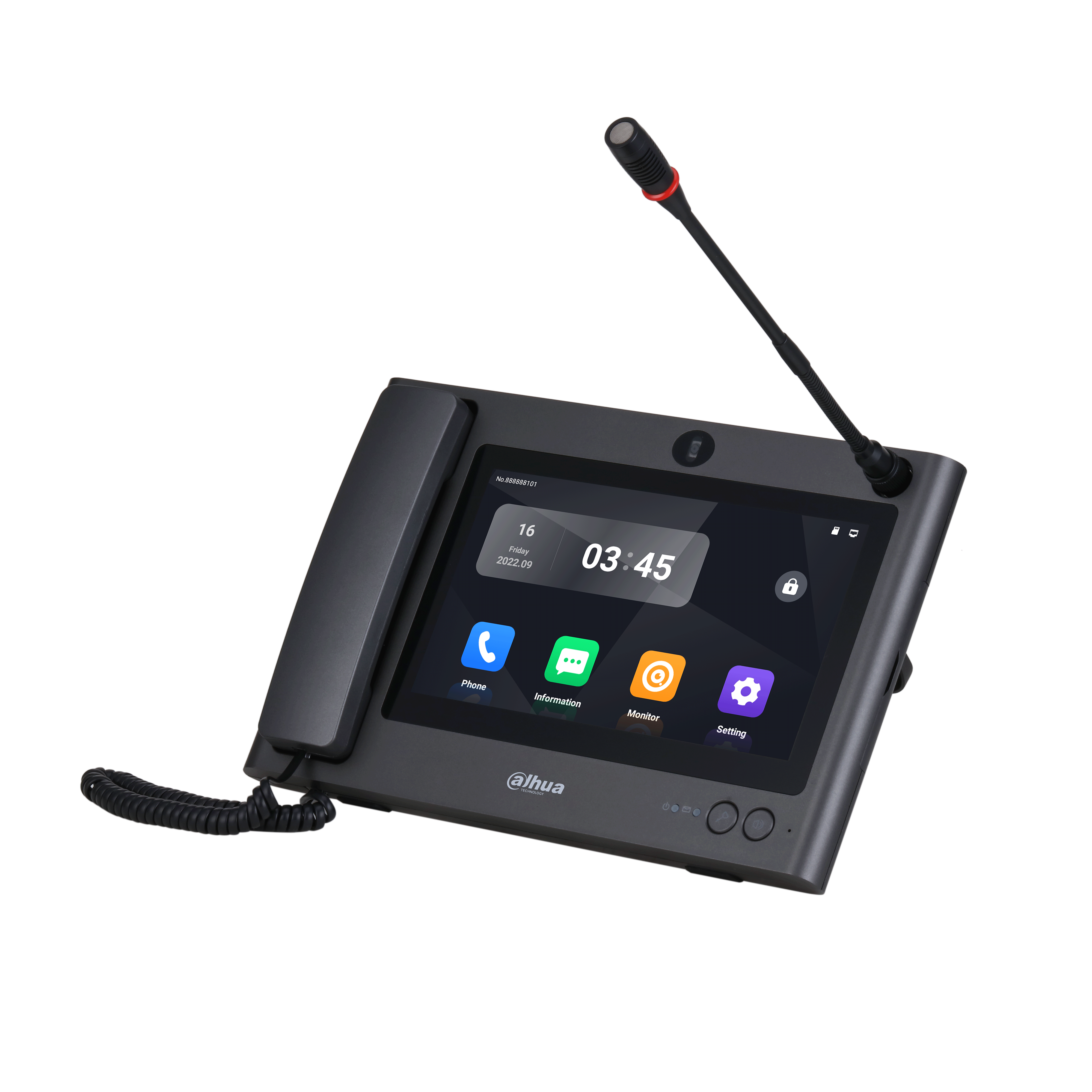

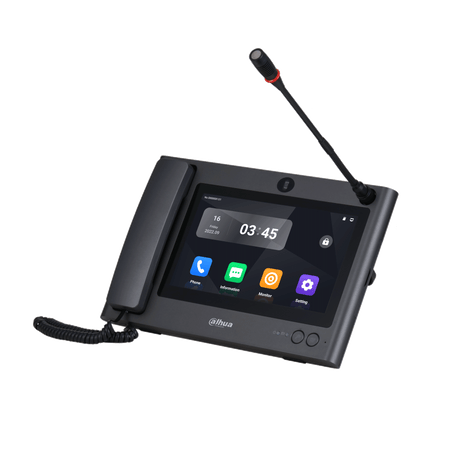

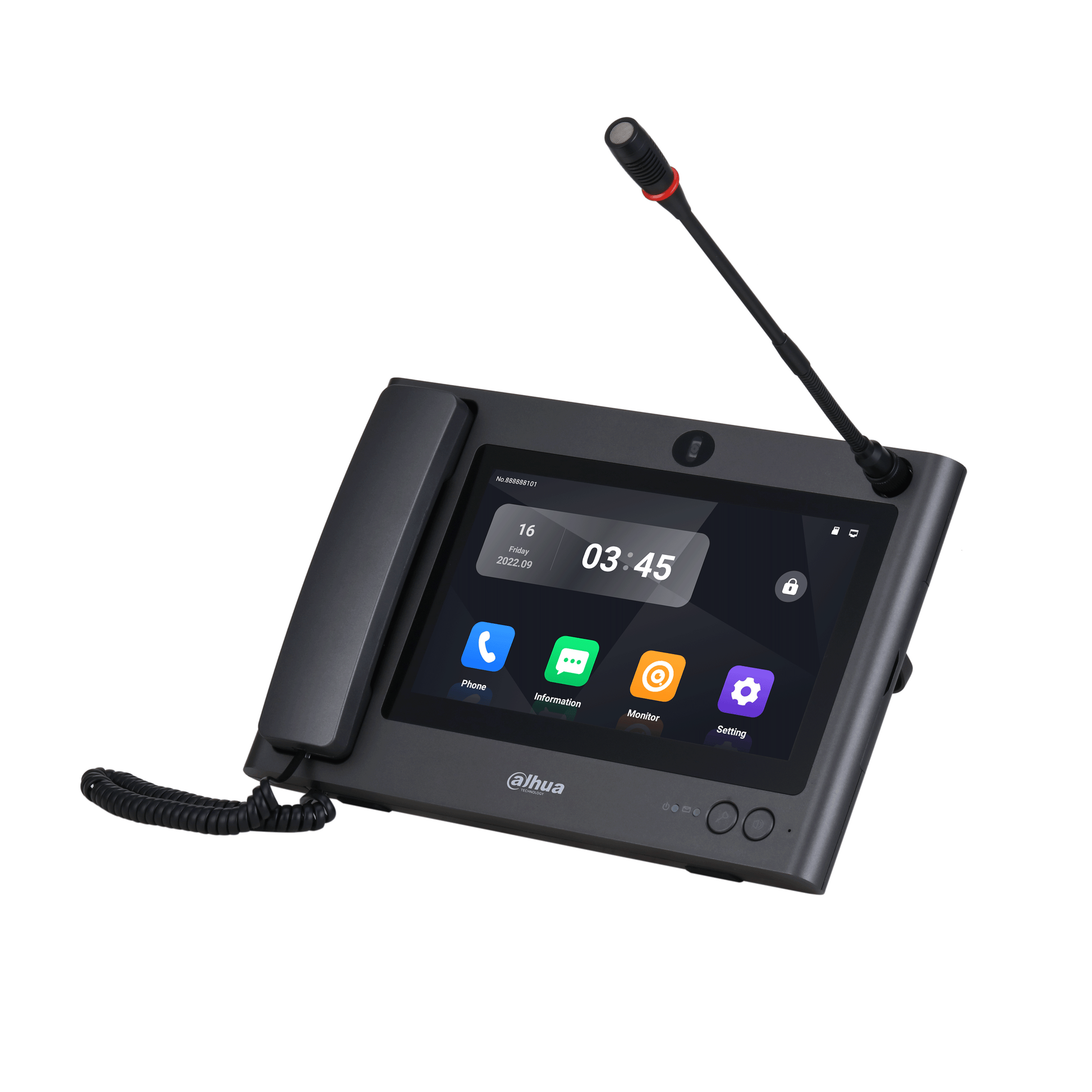

VTS8A40B-CG

> Highly convenient, it has a 10-inch glass touch screen with a 1024 (H) × 600 (V) resolution and supports speaker phone, gooseneck micro phones and handsets.

> Supports desk mount installation, and the bracket can be adjusted from 0°–45°.

> Supports cameras and performing two-way video calls with master stations and indoor monitors.

> Offers HDMI output with a resolution up to 1024 (H) × 600 (V).

> The intercom can be set for residential areas and use in industries.

> Buidlings intercom: Doors can be remotely unlocked during monitoring and while the intercom is in use.

> Features two-way talk for indoor monitors and door stations.

> Monitors 4 channel door stations and IPCs at the same time.

> Records videos, takes snapshots and stores information on SD cards during monitoring and while the intercom is in use.

> Industry intercom: 300 IP VTAs can be connected to the master station.

> Supports two-way talk with emergency phone terminals and emer gency phone terminal stations.

> Monitors 4 channel door stations and IPCs at the same time.

> Records videos, takes snapshots and stores information on SD cards while the emergency phone terminal and emergency terminal station are performing monitoring and using the intercom.

> Offers two-way talk between stations.


Product Data

System

Main Processor

Embedded Processor

Operating System

Android 11

Button Type

Mechanical

Interoperability

ONVIF; CGI; SDK; SIP

Network Protocol

IPv4; RTSP; UDP; FTP; RTP; TCP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

10" TFT display

Screen Resolution

1024 × 600

Camera

5 MP CMOS camera

Field of View

H: 57°; V: 45°; D: 72°

Video Compression

H.264; H.265

Video Resolution

720p

Video Frame Rate

25 fps

Video Bit Rate

2 Mbps

Audio Compression

G.711a; G.711u; PCM

Audio Input

3 Channels

Audio Output

Built-in speaker; handset speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz,16Bit

Function

Communication Mode

Full digital

Multi-Window Display

Supports splitting to 4 windows and monitoring 4-ch 720p videos.

Storage

Micro SD, Max 512 GB

Web Configuration

Yes

Auto Registration

Yes

Access Device

Building mode:
Up to 32 VTSs.
Up to 32 IPCs.
Industry mode:
Up to 300 VTAs (Added through IP).
Up to 32 IPCs.

Performance

Casing Material

PC + ABS

Port

RS-485

1

HDMI

1

USB

1 × USB 2.0 port
1 × USB 3.0 port

Power Output

1 channel, 12 V/200 mA

Network Port

1 × RJ-45 100 Mbps/1000 Mbps self-adaptive

General

Appearance Color

Titanium gray

Power Supply

12 VDC, 4A

Power Adapter

Included

Installation

Desk Mount

Certifications

CE; FCC

Accessory

Power adapter; power cord; handset cord

Product Dimensions

345.00 mm × 224.60 mm × 64.42 mm (13.58" × 8.84" × 2.54")

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

5%–90% (RH) (Non-condensing)

Operating Altitude

0 m–1300 m (0 ft–4265.09 ft)

Power Consumption

≤ 5 W (standby), ≤ 10 W (working)

Gross Weight

2.5 kg (5.51 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30% to 75% (RH)
