DAHUA ISC-ETR1-5050 RF Label 5050
Couldn't load pickup availability
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
![]() |
![]() |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications:![]() |

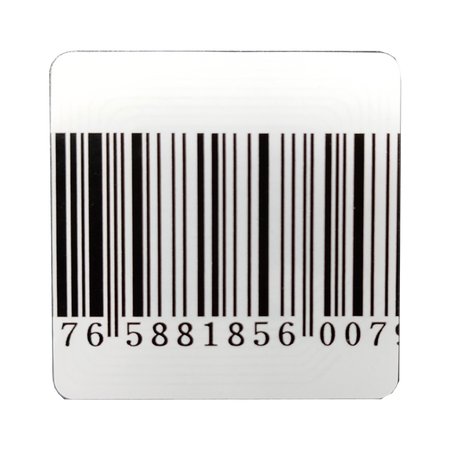

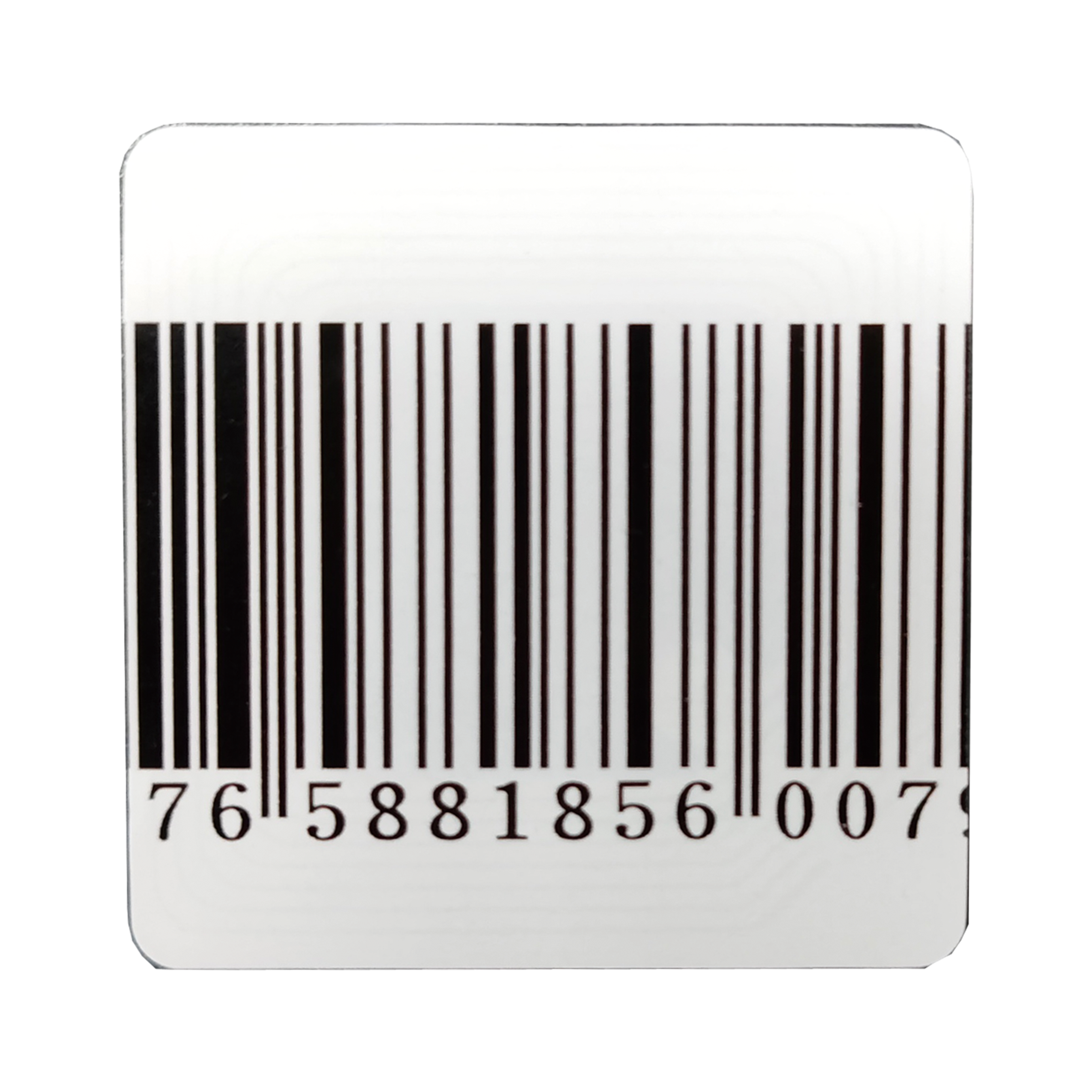

ISC-ETR1-5050
RF Label 5050
> Small in size, able to provide concealed protection.
> Adopts self-adhesive process, which has good adhesion and less residual adhesive.
Product Data
Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technology | Radio-Frequency (RF) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detection Frequency | 8.2 MHz ± 0.4 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AM Antenna Detection Distance | ≤ 0.7 m (Based on system performance) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shell Material | Copper Plate Paper | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Marking | Barcode | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | Conform with RoHS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color | White | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Length | 50 mm (1.97") ± 0.5 mm (0.02") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Width | 50 mm (1.97") ± 0.5 mm (0.02") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Label Thickness | 0.2 mm (0.01") ± 0.02 mm (0.001") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging | 20,000 RF Label per carton | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Carton Dimension | 320 mm × 320 mm × 260 mm ( 12.60" × 12.60" × 10.24") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Carton Weight | 15 kg (33.07 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Order Quantity | 20,000 pcs | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental Constraints | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Environment | Recommend to store at 10 °C to 25 °C and 35% to 65% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Environment | Ambient temperature ranges from 0 °C to 60 °C, humidity below 80% (RH) |
