DAHUA

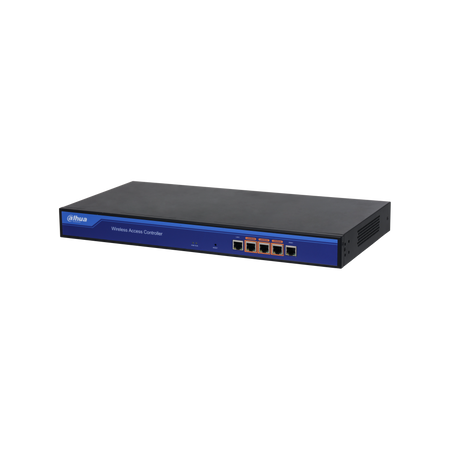

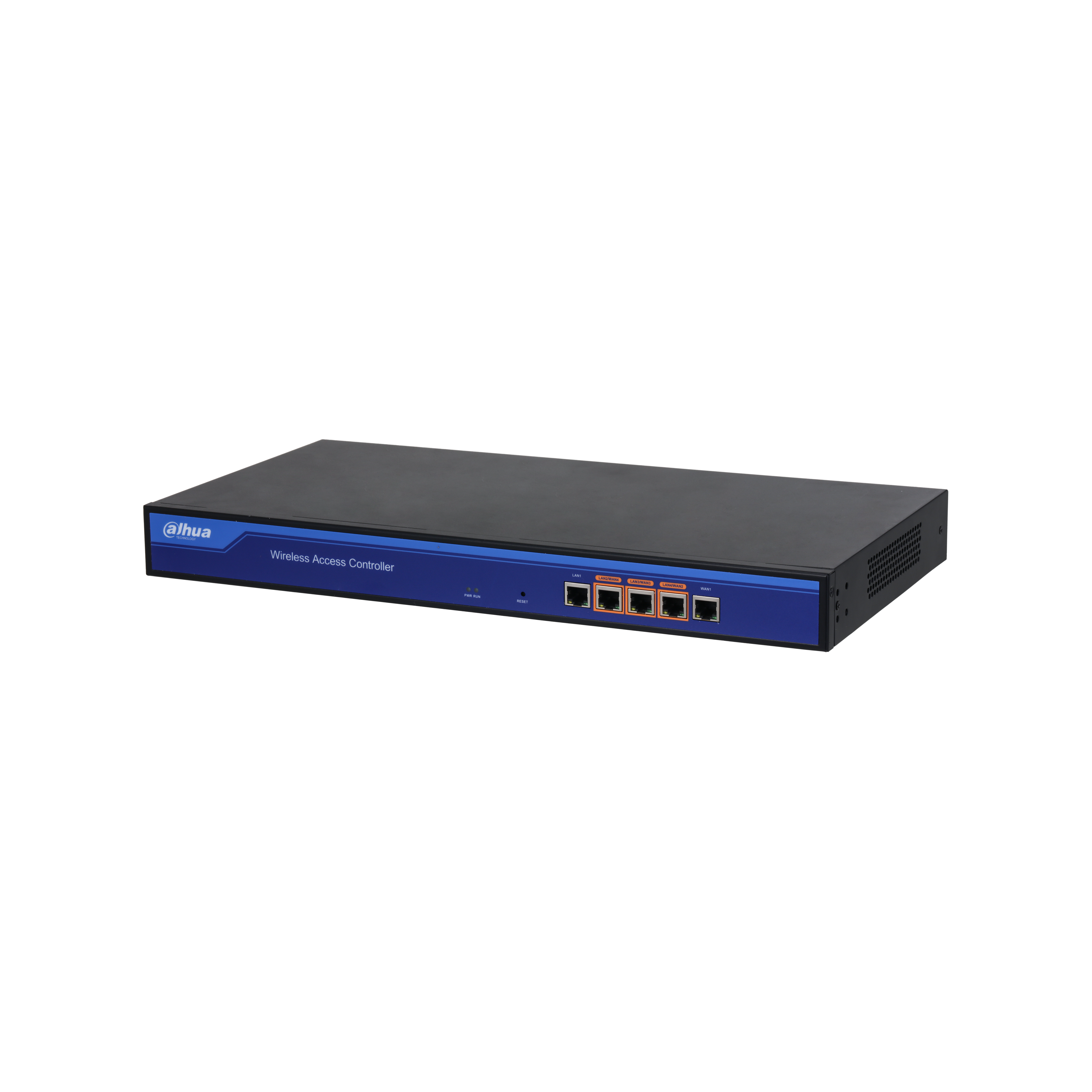

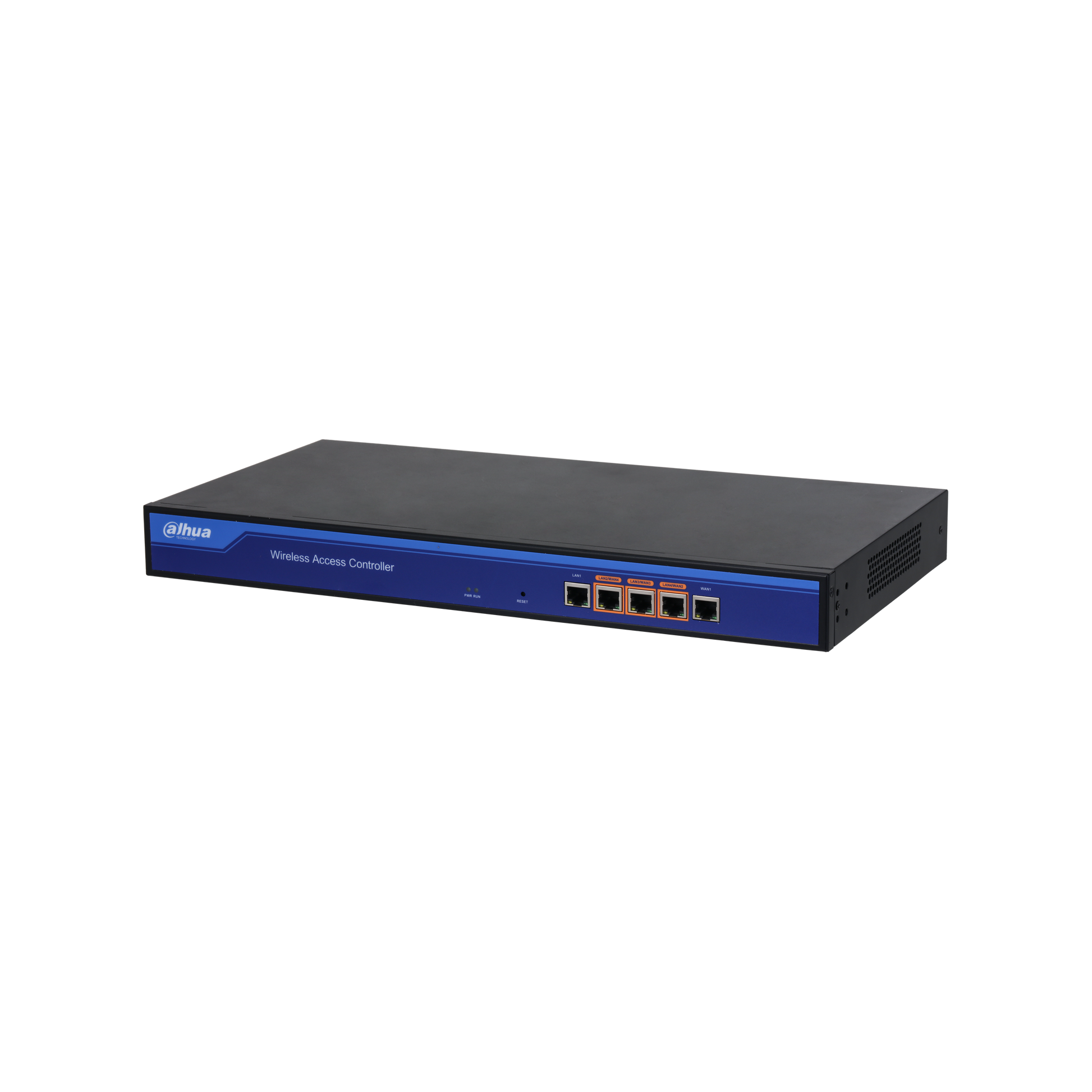

DAHUA EAC256 Wireless Access Controller

Name: DAHUA EAC256 Wireless Access Controller
Brand: DAHUA
Price: 1000000.00 USD
Availability: InStock

In stock

SKU: EAC256

$1,000,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

EAC256

Wireless Access Controller

> Wireless Access Controller.

> Multi WAN-port mode.

> EAP Series AP Management.

> Flexible Forwarding Modes.

> Smart Roaming Features.

> Various kinds of network authentication methods.

Hardware

PoE Power Supply

No

Ethernet Port

5

Ethernet Port Speed

10/100/1000 Mbps

Description of Function Slots

Port 1-5: 5 × 10/100/1000Base-T RJ-45

LAN Port

4 × 1000 Mbps (3 LAN ports can be switched to WAN ports)

WAN Port

1 × 1000 Mbps

Reset Button

1

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz, 2 A

Power Consumption

Idling: 0.96 W
Full load: 12 W

Protection

IP20

Function

802.11 LAN Protocols

802.11n;802.11b;802.11ax;802.11a;802.11g;802.11ac

CAPWAP

Layer 2 network topology between an AP and AC
Enable an AP to automatically discover an accessible AC
Enable an AP to automatically download configurations from an AC

Roaming

Intra-AC roaming

Forwarding

Local forwarding
Centralized forwarding

Wireless QoS

AP-based bandwidth control
WLAN-based bandwidth control
User-based static and smart speed control
Fair balancing

User Isolation

WLAN-based user isolation

User Management

Access control based on SSID user number

RF Management

Country code configuration
Manual configuration of transmitting power
Manual configuration of working channel
Automatically allocation of working channel
Scheduled reallocation of wireless channel

WAN Port Function

Dynamic IP
Static IP
PPPoE
IP/Mask configuration
MTU configuration
TCP MSS configuration
Network bandwidth configuration
Gateway address assignment
NQA configuration to probe address

Multi-WAN Load Balancing

Distributing network traffic equally
Ratio load balancing
Multi-link for load balancing

Link Detection

Enable and disable link detection
ICMP probe
TCP probe

IP Routing

Static routing
Policy-based routing

VPN

L2TP VPN
PPTP VPN

DHCP Function

DHCP Server
DHCP Client

Security

Portal Authentication
PPPoE Authentication
IP/MAC Authentication
IP/MAC Binging
Intranet Anomaly Detection
Intranet Attack Protection
WAN Ping Forbid
Virtual AP
Multiple SSIDs
SSID Hiding
WPA/WPA2
WPA3
WEP(WEP/WEP128)
TKIP

QoS/ACL

Traffic supervision
Congestion management
Congestion avoidance
Traffic shaping
IP-based speed limit
Traffic classification

Equipment Management

Web Management
TFTP
FTP
NTP
System Log
Ping

Performance

Default Number of Manageable APs

256

Maximum Number of Manageable APs

256

Maximum Number of Configurable APs

256

Users Capacity
