DAHUA AR306-E Enterprise Router
DAHUA AR306-E Enterprise Router
DAHUA

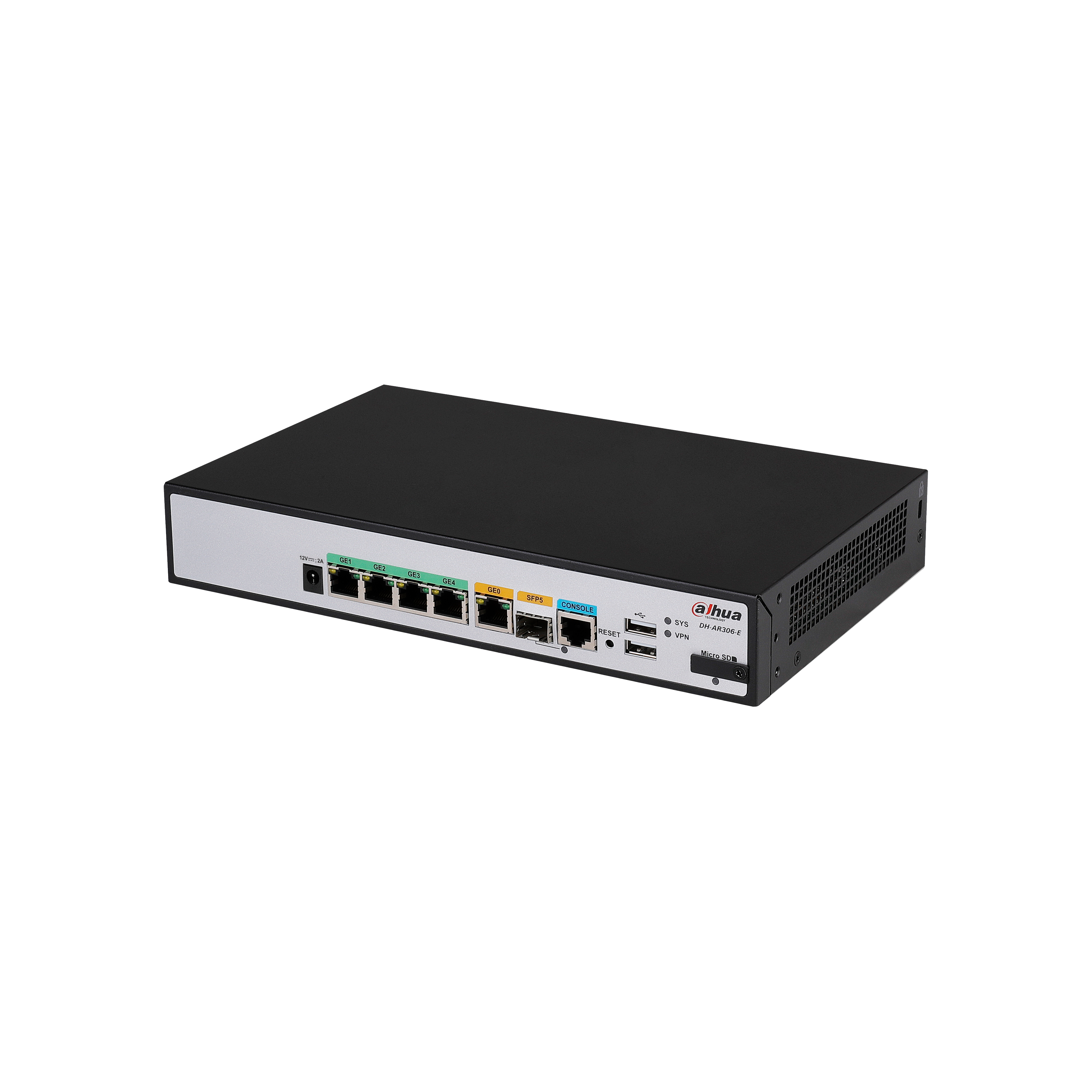

DAHUA AR306-E Enterprise Router

In stock
SKU: AR306-E
$1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



AR306-E

> 2 WAN ports, 4 LAN ports, 2 USB 2.0 ports, and 1 Console port.

> High-performance multi-core CPU that enhances the ability of the system to deal with concurrent processes.

> Adapts to the iLinksView platform.

> Excellent security functions.



Product Data

Hardware

Ethernet Port Speed

1 Gbps

Description of Function Slots

GE 0: 1 × RJ-45 10/100/1000 Mbps (WAN)
GE 1-3: 4 × RJ-45 10/100/1000 Mbps (LAN, can be configured as WAN ports)
SFP 5: 1 × SFP 10/100/1000 Mbps (WAN)

Debugging

1 × USB 2.0
1 × Console

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Operating Humidity

5%–95% (RH)

Power Consumption

Full load: 30 W

Performance

Management Type

Yes

MTBF

50,000 hours

VLAN Number

64

Dynamic ARP

4000

Reliability

Reliability

LDP, Static LSP;
L3VPN: Multiprotocol MPLS VPN (Option 1/2/3), nested MPLS VPN, hierarchy of PE (HoPE), CE dual-homing, MCE, multi-role host and more;
L2VPN: Martini, Kompella, CCC, and SVC;
MPLS TE, RSVP TE;
VRRP, VRRPv3;
Multi-link for load balancing and backup;
Association between NQA and routing/VRRP/interface backup, and it realizes end-to-end link detection and backup

Security

Security

PORTAL, 802.1x;
Local authentication, RBAC, RADIUS, TACACS+;
ASPF, ALC, FILTER, domain-based firewall, connections restriction, IPS;
IKE/IPSec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN;
NAT/NAPT, PKI, RSA, URPF;
DDoS attack prevention, ARP anti-attack, URL filtering;
Endpoint Admission Defense (EAD);
Deep Packet Inspection (DPI), which limits speed and filters data traffic

Management & Maintenance

Equipment Management

SNMP v1/v2c/v3, TR069, SYSLOG, RMON;
Telnet, SSHv1.5/2.0, FTP;
Embedded Automation Architecture (EAA)
CLI management, file system management, Dual Image;
Test NQA based on DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP

General

Product Dimensions

266 mm × 161 mm × 43.6 mm (0.47" × 6.34" × 1.72") (L × W × H)

Packaging Dimensions

480 mm × 370 mm × 290 mm (18.90" × 14.57" × 11.42") (L × W × H)
