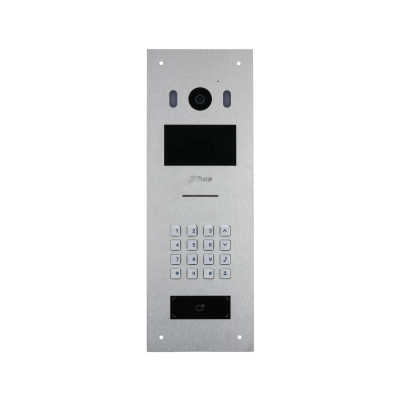

DAHUA VTO6521K Apartment Door Station

In stock
SKU: VTO6521K
$385.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



VTO6521K

Apartment Door Station

> 4.3-inch LCD display with easy-to-press metal buttons; screen resolution 800 × 480.

> 2MP CMOS; true WDR.

> 316 stainless steel panel; IP65, IK08.

> Operating temperature: –30 °C to +60 °C.

> Auto light illumination reduces light pollution.

> Multiple verification methods: Password, IC card, QR code, and remote unlocking.

> Support 20,000 users and 10,000 cards.

> Support full duplex; management platform, and voice call through APP.

> Support SIP server.

> Support duress alarm, tamper alarm, and door sensor timeout alarm.


Product Data

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Button Type

Mechanical

Network Protocol

RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Basic

Screen Type

Non-touchscreen

Display Screen

4.3" LCD

Resolution

800 (H) × 480 (V)

Camera

1/2.8" CMOS 2-MP low-illumination HD color camera

Field of View

H: 86.4°; V: 46.2°; D: 100.6°

WDR

120 dB

Noise Reduction

3D NR

Video Compression

H.264

Video Resolution

50 Hz: Main stream (720p@25 fps), sub stream (1080p@25 fps)
60 Hz: Main stream (720p@30 fps), sub stream (1080p@30 fps)

Video Frame Rate

25 fps

Video Bit Rate

256 kbps–8 Mbps

Light Compensation

Auto white light

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-way voice communication

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Communication Mode

Full digital

Unlock Mode

Card; remote; password; QR code

Card Type

IC card

Motion Detection

Video motion detection

Leave Videos

Yes

Web Configuration

Yes

Performance

Card Reading Distance

1 cm–3 cm (0.39"–1.18")

Issue Card Locally

Yes

Casing

316 stainless steel

Capacity

Card Capacity

10, 000

Port

RS-485

1

Wiegand

1 (input or output, configurable)

Electric Lock

1

Alarm Input

1 (digital quantity)

Alarm Output

1 (relay)

Power Output

1-ch, 12 V/200 mA

Exit Button

1

Door Status Detection

1

Lock Control

1, normally open by default (can be expanded to 2 channels with RS-485)

Network Port

1 × RJ-45 10/100 Mbps Ethernet port

Alarm

Tamper Alarm

Yes

General

Unlock Password Mode

User password; public password; duress password

Appearance color

Silver

Power Supply

12 VDC, 2 A

Power Adapter

Optional

Installation

Flush Mount; Surface Mount

Certifications

CE; FCC

Accessory

Optional: flush mount box, rain cover

Product Dimensions

406 mm × 143 mm × 54.05 mm (15.98" × 5.63" × 2.13")

Protection

IP65 rated (silicone sealant is needed for installation)
IK08

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

0 m–3,000 m (0 ft–9,842.51 ft)

Power Consumption

≤ 5 W (standby), ≤ 18 W (working)

Gross Weight

2.05 kg (4.52 lb)
