Home » DAHUA SD22204DB-GC 2MP 4x Starlight HDCVI PTZ Camera
DAHUA

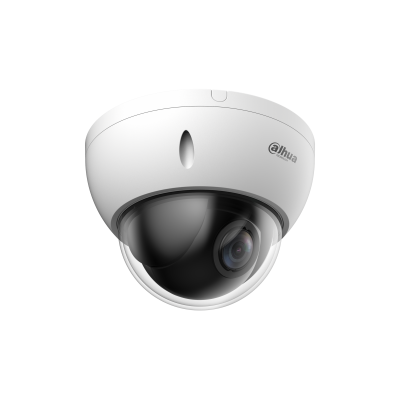

DAHUA SD22204DB-GC 2MP 4x Starlight HDCVI PTZ Camera

In stock
SKU: SD22204DB-GC
$168.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



SD22204DB-GC

2MP 4x Starlight HDCVI PTZ Camera

> 1/2.8" 2Megapixel CMOS.

> Powerful 4x optical zoom.

> Starlight technology.

> 2D NR; 3D NR.

> Max. 25/30 fps@1080p, 25/30/50/60 fps@720p.

> IP66, IK10.






*********

Camera

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

256 MB

Electronic Shutter Speed

1/3 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

0.005lux@F1.6 (Color, 30 IRE);
0.0005lux@F1.6 (B/W, 30 IRE)

Lens

Focal Length

2.7 mm–11 mm

Max. Aperture

F1.6–F3.0

Field of View

H: 99.1°–31.9°
V: 53.4°–18.0°
D: 117.7°–36.6°

Optical Zoom

4×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

1 m (3.28 ft)

DORI Distance

Detect

Observe

Recognize

Identify

151.7 m (497.70 ft)

59.9 m (196.52 ft)

30.3 m (99.41 ft)

15.2 m (49.87 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 355°;
Tilt: 0° to +90° (When the vertical field of view is between 0° and 10°, the device case will block part of the image)

Manual Control Speed

Pan: 0.1°–100°/s
Tilt: 0.1°–60°/s

Preset Speed

Pan: 100°/s;
Tilt: 60°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Power-off Memory

Yes

Idle Motion

Preset; Tour

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Video

Resolution

1080p (1920 × 1080); 720p (1280 × 720); D1 (704 ×
576/704 × 480)

Video Frame Rate

1080p (25/30 fps); 720p (25/30/50/60 fps)

Day/Night

Yes

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D NR; 3D NR

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

S/N Ratio

≥50 dB

Function

CVI Product Output Mode

TVI;CVI;CVBS;AHD (CVBS is only used for debugging)

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port

Analog Output

1 channel (CVBS/CVI output, BNC)

RS-485

1 (baud rate range: 1200 bps–9600 bps)

Power

Power Supply

12VDC,1.5 A ± 10%

Power Consumption

Basic: 7 W
Max.: 9 W (PTZ)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH)

Protection

IP66; IK10; TVS 6000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

88.9 mm × Φ122.0 mm (3.50" × Φ4.80")

Net Weight

0.6 kg (1.32 lb)

Gross Weight

0.65 kg (1.43 lb)

*******
